Custom Blade Flag Details
Order Includes:
- Custom Print
- Pole Set
- Economy Bags
Material Options:
- Outdoor Flag Polyester: Lightweight knitted fabric, excellent bleed-through and tear-resistance, 3.25oz/yd²
- Mesh Polyester: Knitted fabric with mesh appearance and excellent through-print, 3.25oz/yd²
Pole Comparison:
- Standard: Aluminum and fiberglass poles withstand up to 30mph winds when used with a single-reverse flag and up to 17mph when used with a double-sided flag
- Premium: Aviation-grade fiberglass poles withstand up to 63mph winds when used with a single-reverse flag and up to 46mph when used with a double-sided flag
Supplementary Notes:
- Outdoor tested
- Single-reverse or double-sided flag print
- Additional bases for any application
- Custom teardrop flags also available
Notice/Disclaimer:
- Do not use near overhead wires or allow flag to blow against structures. Allow a 4ft-12ft radius from base for flag clearance depending on size. See assembly sheet for complete instructions
Layout & Finishes:
- Single-reverse: Hemmed sides, left side finished with pole sleeve made of printed flag material with header tape reinforcement tip, tab sewn at bottom of print.
- Double-sided: Two prints sewn together with a blocking inner liner, pillow-case style hemmed sides, left side finished with pole sleeve made of printed flag material with header tape reinforcement tip, tab sewn at bottom of print
Pole Set Specifications - Standard Style
Size | Print Size | Height Above Ground | Weight | Pole Diameter | Part Number |
---|---|---|---|---|---|
X X Small | 1.3' x 3.1' | 4.1' | .5lbs | Inner: 17mm (+/- 0.2mm) Outer: 19mm (+/- 0.2mm) | H_BF00060 |
X Small | 1.6' x 4.9' | 5.9' | 0.7lb | Inner: 17mm (+/- 0.2mm) Outer: 19mm (+/- 0.2mm) | H_BF00071 |
Small | 1.8' x 6.6' | 8.2' | 0.8lb | Inner: 17mm (+/- 0.2mm) Outer: 19mm (+/- 0.2mm) | H_BF00100 |

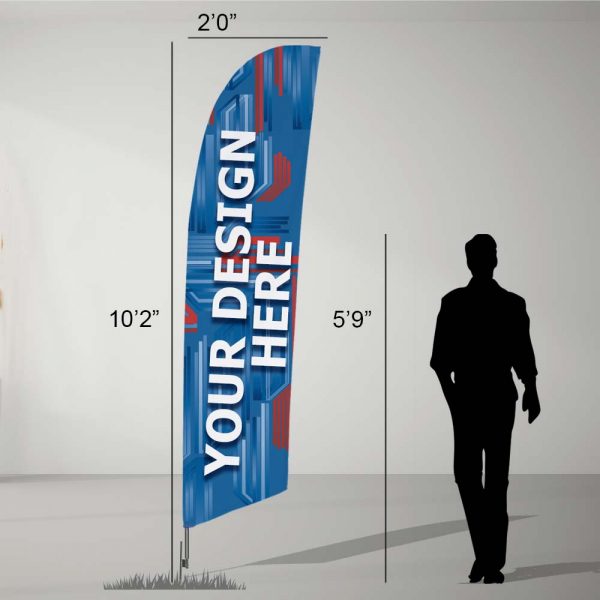

Medium | 2.0' x 8.5' | 10.2' | 1.0lb | Inner: 17mm (+/- 0.2mm) Outer: 19mm (+/- 0.2mm) | H_BF00200 |
Large | 2.6' x 11.2' | 13.5' | 1.4lb | Inner: 17mm (+/- 0.2mm) Outer: 19mm (+/- 0.2mm) | H_BF00300 |
X Large | 2.8' x 14.8' | 17.1' | 2.0lb | Inner: 17mm (+/- 0.2mm) Outer: 19mm (+/- 0.2mm) | H_BF00400 |
Pole Set Specifications - Premium Style
Size | Print Size | Height Above Ground | Weight | Pole Diameter | Part Number |
---|---|---|---|---|---|
Medium | 2.0' x 8.5' | 10.2' | 1.1lb | Inner: 17mm (+/- 0.2mm) Outer: 26mm (+/- 0.2mm) | H_BF00202 |
Large | 2.6' x 11.2' | 13.0' | 1.4lb | Inner: 17mm (+/- 0.2mm) Outer: 26mm (+/- 0.2mm) | H_BF00302 |
X Large | 2.8' x 14.8' | 17.7' | 2.1lb | Inner: 17mm (+/- 0.2mm) Outer: 26mm (+/- 0.2mm) | H_BF00402 |
